This article is about Ground Station for Drones: Functions, Practical Applications, and Building Guide
Introduction: In the realm of drone operations, a ground station plays a pivotal role as a central command center for the control and monitoring of unmanned aerial vehicles (UAVs). Serving as a consolidated platform, it facilitates the management of flight parameters, mission planning, real-time telemetry, and data acquisition. This article delves into the diverse applications of ground stations, explores their practical use cases across various industries, and outlines a step-by-step guide for building one.
Applications of Ground Stations in Drone Operations:
Flight Control and Monitoring: Ground stations act as a hub for controlling drones during flight operations. Equipped with a user-friendly interface, they enable operators to monitor and adjust real-time flight parameters such as altitude, speed, heading, and camera settings. This precise control ensures safe and efficient flight operations.
Mission Planning and Autonomy: Ground stations empower operators to meticulously plan missions in advance. They facilitate the definition of waypoints, flight path setting, and action specification at each location. Once programmed, drones can autonomously execute the predefined mission plan, performing tasks such as aerial surveys, mapping, and inspections. Ground stations optimize flight paths, minimize human error, and deliver consistent and reproducible results.
Telemetry and Data Acquisition: Ground stations provide access to real-time telemetry data from the drone, including crucial information on position, altitude, speed, battery status, and sensor readings. Operators can monitor this data to ensure that the drone operates within desired parameters, making informed decisions based on live feedback. Ground stations also facilitate seamless data acquisition, allowing operators to receive and store images, videos, and sensor data captured during flights.
Practical Use Cases of Ground Stations across Industries:
Aerial Photography and Videography: Ground stations offer professional photographers and cinematographers precise control over their drones during aerial shoots. Operators can monitor camera feeds, adjust settings, and effortlessly capture stunning images and videos.
Mapping and Surveying: Ground stations find extensive use in mapping and surveying applications. Operators can meticulously plan accurate flight paths, capture high-resolution imagery, and generate detailed maps, orthomosaics, and 3D models of landscapes and structures. Ground stations enhance the efficiency and accuracy of mapping and surveying tasks.
Infrastructure Inspection: Ground stations play a vital role in inspecting critical infrastructure such as power lines, pipelines, and buildings. Operators can program drones to follow predefined flight paths, capturing high-resolution imagery and videos of infrastructure elements. This facilitates remote inspections, enables the identification of potential issues, and facilitates proactive maintenance.
Search and Rescue: Ground stations are crucial in search and rescue operations. Drones equipped with cameras and thermal sensors can be swiftly deployed to search vast areas. Ground stations enable operators to monitor live video feeds, track drone positions, and coordinate search efforts with rescue teams on the ground.
Step-by-Step Guide to Building a Ground Station:
Hardware Selection: Choose an appropriate computer system that meets the requirements for running ground station software. Ensure it possesses sufficient processing power, memory, and storage capacity. Additionally, select a compatible radio control system to establish seamless communication with the drone.
Ground Station Software: Install reliable ground station software such as Mission Planner, QGroundControl, or UgCS. These software platforms offer a wide range of features for mission planning, flight control, telemetry monitoring, and data analysis.

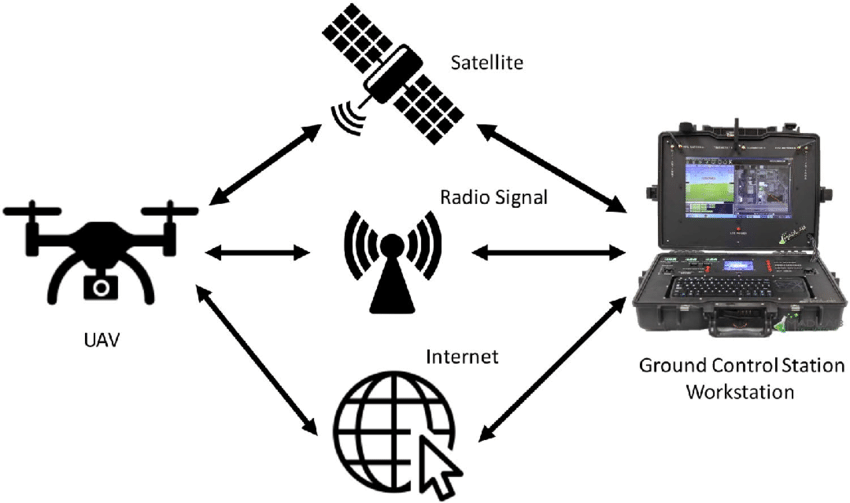

Connection Setup: Establish a solid connection between the ground station computer and the drone’s flight controller. This is typically achieved through a USB cable, telemetry radio, or Wi-Fi connection. Follow the instructions provided by the drone manufacturer and the ground station software to ensure a reliable connection.
Sensor Calibration and Testing: Calibrate the drone’s sensors, including the compass, gyroscope, and accelerometer, as per the instructions provided by the drone manufacturer. Conduct test flights to ensure proper communication between the ground station and the drone, and verify the accuracy of telemetry data.
Mission Planning and Execution: Utilize the ground station software to plan missions by defining waypoints, setting flight parameters, and specifying actions. Verify the mission plan and execute it when ready. Monitor the drone’s progress, make adjustments if necessary, and analyze the captured data upon completion.
Conclusion: Ground stations serve as command centers for controlling and monitoring drones during flight operations. They offer precise control, mission planning capabilities, and real-time telemetry data, making them invaluable tools across various industries. Whether employed for aerial photography, mapping, infrastructure inspection, or search and rescue missions, ground stations significantly enhance the efficiency, safety, and autonomy of drone operations. By following the step-by-step guidelines provided in this article, both enthusiasts and professionals can successfully build their own ground station and unlock the full potential of their drones.
